Cisco 3G-AE015-R

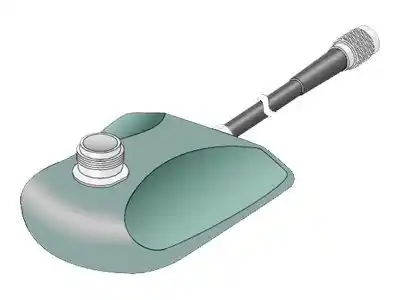

The Cisco 3G-AE015-R is a single-port antenna extension base designed for use with portable antennas operating at frequencies up to 6 GHz. It connects to 3G wireless high-speed WAN interface cards (HWICs) using a threaded Neill-Concelman (TNC) male connector. This antenna base unit includes a 15-foot plenum LMR-195 cable and can be used with the Cisco 3G-ANTM1919D multiband swivel-mount dipole antenna.

Product Specifications:

• Product Type: Single-port antenna base

• Operating Frequency Range: Up to 6 GHz

• Attenuation: <3 dB at or below 2.5 GHz

• Antenna Base Connector: TNC female

• Pigtail Connector: TNC male

• Cable Length: 15 ft (4.6 m)

• Environment: Indoor use only

• Base Material: Cisco grey UL94 V0 PC/ABS plastic

• Maximum Input Power: 25 Watts

• VSWR: <2.0
